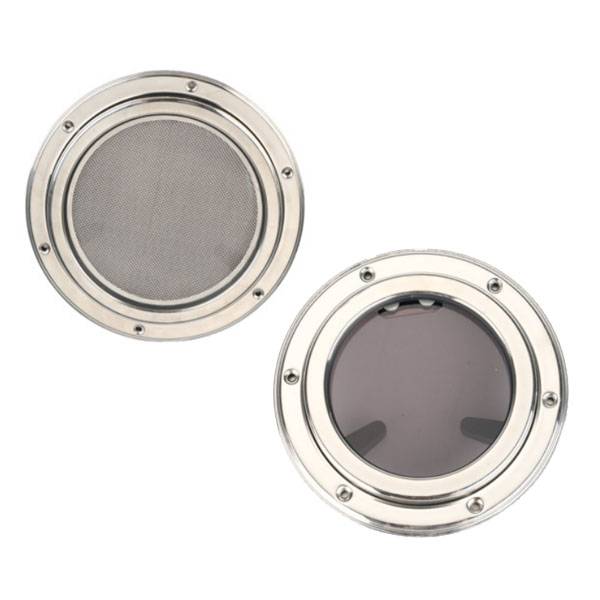

The stainless steel portholes are made of 316 stainless steel and acrylic glass.
There is mosquito net cover option.
Stainless Steel Portholes
| Item No. | Cut-out Dimensions | External Dimensions | Total Height | Deck Thickness | Mosquito Net | Weight |
| XK0051SA1 | Φ128mm | Φ158mm | 20mm | 9mm | – | 0.42kg |
| XK0052SA1 | Φ153mm | Φ184mm | 20mm | 9mm | – | 0.53kg |
| XK0053SA1 | Φ176mm | Φ210mm | 20mm | 9mm | – | 0.62kg |
| XK0051SA2 | Φ128mm | Φ158mm | 20mm | 9mm | √ | 0.45kg |
| XK0052SA2 | Φ153mm | Φ184mm | 20mm | 9mm | √ | 0.56kg |
| XK0053SA2 | Φ176mm | Φ210mm | 20mm | 9mm | √ | 0.66kg |
The stainless steel portholes are made of 316 stainless steel and acrylic glass.
There is mosquito net cover option.
