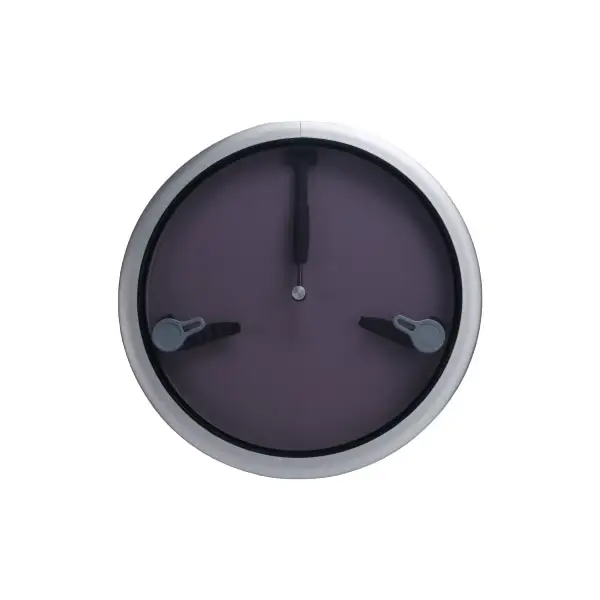

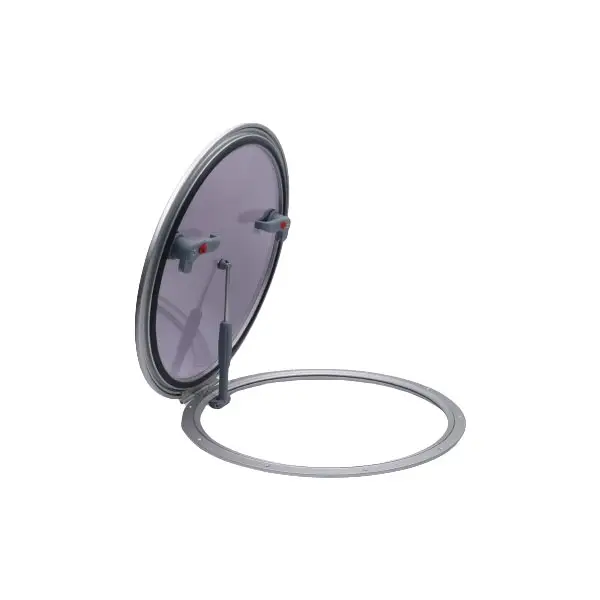

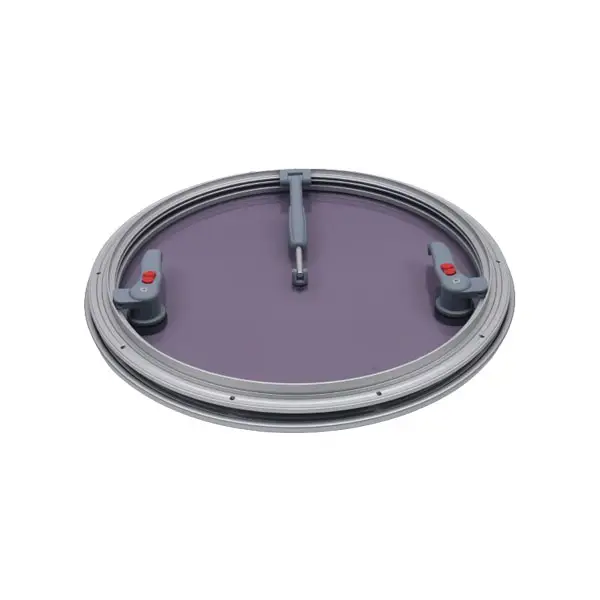

The round deck hatch is made of anodized aluminum frame and acrylic glass. Custom deck hatches are available with Xinkun Marine.
| Item No. | Handle | Cutout Dimensions | External Dimensions | Total Height | Deck Thickness | Weight |
| XK0094AA28 | 1 | Φ278mm | Φ343mm | 27.5mm | 15mm | 2.70kg |
| XK0094AA32 | 1 | Φ318mm | Φ383mm | 27.5mm | 15mm | 3.30kg |
| XK0094AA42 | 2 | Φ420mm | Φ485mm | 27.5mm | 15mm | 4.78kg |
| XK0094AA48 | 2 | Φ480mm | Φ545mm | 27.5mm | 15mm | 5.70kg |
| XK0094AA52 | 2 | Φ522mm | Φ587mm | 27.5mm | 15mm | 6.25kg |
The round deck hatch is made of anodized aluminum frame and acrylic glass. Custom deck hatches are available with Xinkun Marine.
Features:
Low profile hatches
Anodized aluminium frame
Acrylic glass
Nylon handle
Corrosion resistance
