Aluminium Outboard Motor Bracket

Category

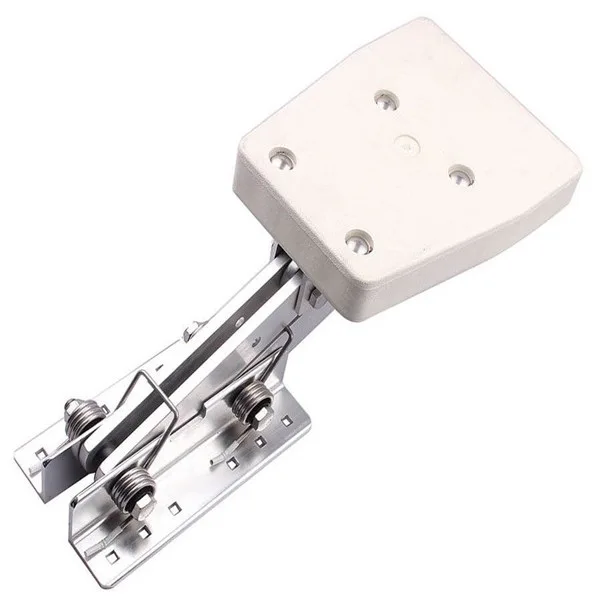

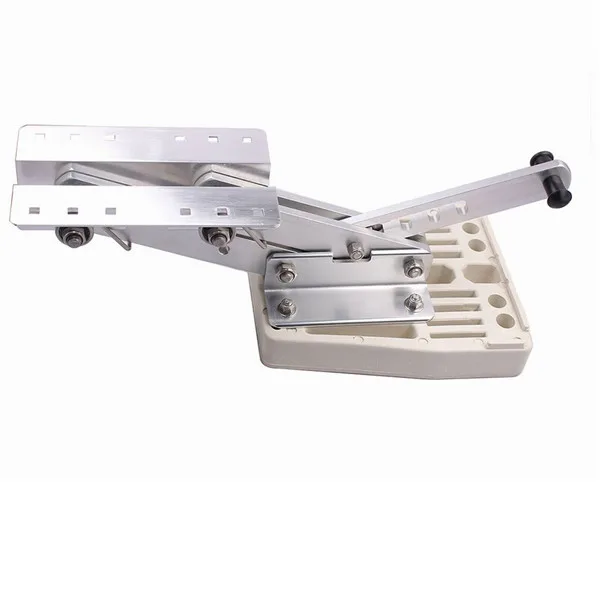

Outboard motor mount bracket, made of aluminum, with plastic pad.

Additional information

Item No.

890954

Product Details:

For 2-stroke motors 7.5HP – 20 HP.

Material: aluminium construction, solid polypropylene mounting board.

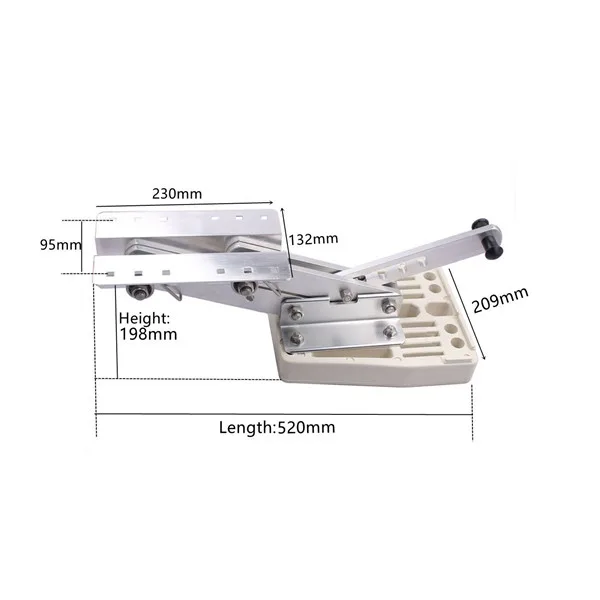

Board area: 260 x 205 mm (10-1/4″ x 8″)

Mount area on boat: 132mm x 230mm (5-1/4″ x 9″)

Mount holes: 8mm

Lift range: 340mm (13-3/8″)

Mounting holes have a horizontal distance of 100mm across (center to center), and multiple vertical holes for different mounting options.

Made of marine grade aluminum, corrosion resistant, heat resistant, long service life and easy to install.
